Product

Rotary Tillers

The AGROS rotary tillers boast high durability thanks to their sturdy design,
and help with efficient soil cultivation through a variety of models.

Extra Large size (High Position)
Rotary Tillers
(AR8000)

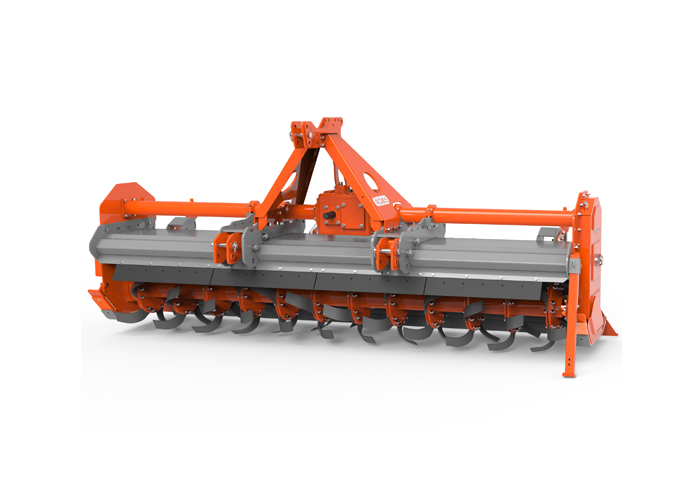

The AR8000 series is a premium-grade super large rotary tiller
designed for mounting on 140 to 200 horsepower tractors.

It features a floating-type lower link connecting plate with
shock-absorbing capabilities to enhance the stability of the
machine.
The tiller is equipped with high-tensile steel blade shaft flanges and blades made from special materials to maximize durability
and performance.

Catalog Product Inquiry

Specifications

제품사양
Model
Overall Width
(mm)
Overall Height
(mm)
Overall Length
(mm)
Working Width
(mm)
Working Depth
(mm)
Number of
Flanges (EA)
Number of
Blades (EA)
Blade Shaft
Speed (rpm)
Required Power
(hp)
Height of PTO Shaft (mm)
Weight
(kg)
AR8285  3,180 1,520 1,245 2,825 150~200  11 66 161, 178,
196, 216 /
540rpm		 140~160  880 1,330

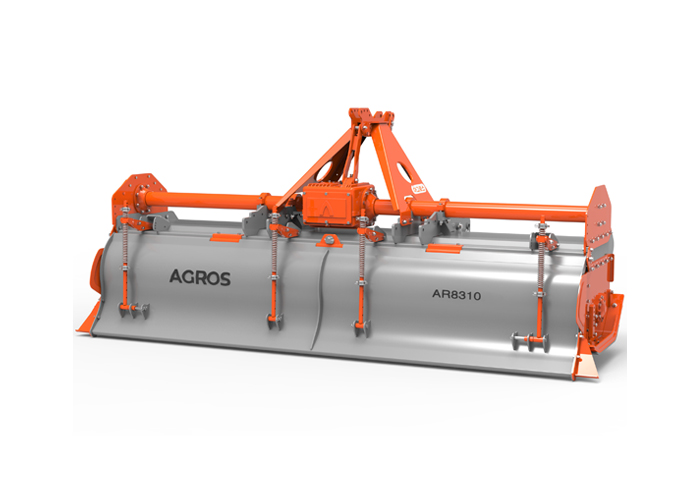

AR8310  3,440 3,085 12 72 160~200 1,400

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

  • Feature 01

    Up to 200 HP multi-speed gearbox
    (Oil gauge installed as standard)

  • Feature 02

    • - Spring tension type back cover control bar
      (Sturdy ring pin fixation type)
    • - Back cover Adjustable attachment position
      can be changed

  • Feature 03

    Floating type lower link connection plate
    absorbs shock loads and increases
    aircraft stability

  • Feature 04

    • - Powerful special Geared side drive
      of material
    • - Largest gear specifications in its class
    • - Perfect gear fixation using special grooved
      nuts

  • Feature 05

    • - Blade with excellent low load and soil
      fluidity Arrangement
    • - Special Material blade (Tilling blade)
      and blade flange
      (Tillage blade type: C)

  • Feature 06

    • - Economical and convenient replacement
      type Auxiliary skid (Double plate)
    • - Use of highly durable spring steel

  • Feature 07

    • - Special Front mud splatter prevention
      rubber plate with good material flexibility
    • - Detachable type for easy attachment
      and detachment

  • Feature 08

    Versatile with sturdy structure and various
    mounting holes top master

Rotary tiller maintenance inspection and refueling items(AR8000)

▲ : Check

● : Replace

Rotary tiller maintenance inspection and refueling items(AR8000H)
Inspection Point Oil Type Oil Inspection Time Volume Instructions
Everyday 50 Hours
Everyday		 100 Hours
Everyday		 200 Hours
Everyday
Gearbox Gear Oil ▲ ▲ ● 9.0 Check the oil level using the oil gauge, and replace or add oil as needed.
Side Cover Gear Oil ▲ ▲ ● 4.0 If oil does not flow out when you open the inspection plug, add oil.
If oil flows out, check the oil's color and foreign matter condition,
and replace the oil if necessary.
Bearing Cover Gear Oil ▲ ▲ 0.2 The oil level is adequate when it reaches the inspection plug.
Universal Joint Grease ▲ ▲ Grease Nipple Injection
Conclusion of
Each Part 		▲ ▲ Check the attachment status of the top master’s plow blade
and the plow shaft.
Blade ▲ ▲ Inspect bolts and nuts for any damage or deformation.

※ After the initial 50 hours of use, replace all areas where gear oil is injected.

※ When replacing oil, dispose of waste at a designated, authorized waste disposal facility.
