Rotary Tillers

The AGROS rotary tillers boast high durability thanks to their sturdy design,
and help with efficient soil cultivation through a variety of models.

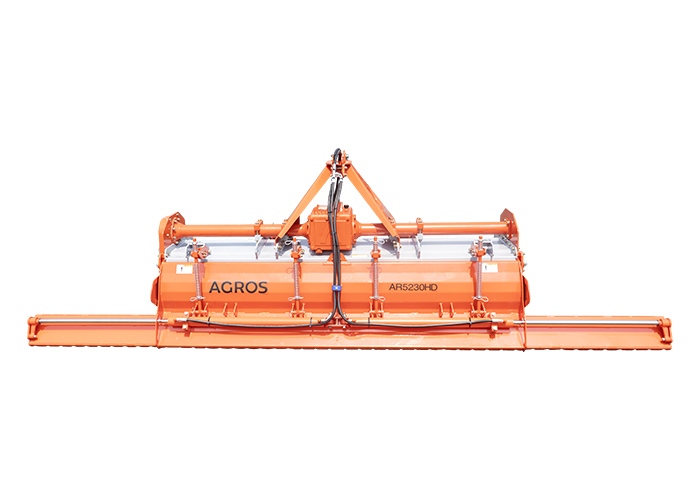

Harrow Options (2000~5000HA)

The HA series achieves perfect harrow operation with its
patented specially shaped harrow arm and water/soil rake
groove design.
Shows excellent performance in grading of fields as well as
paddy fields.
The rear cover and harrow plate are installed by applying left
and right independent cylinders.
Manufactured with a double bonded structure to ensure
excellent durability.
The HA series is AGROS On the rotary tiller It can be easily
Installed by simply replacing the back cover.

Product Inquiry

Specifications (Small, Medium Size)

Specifications (Small, Medium Size)
Model	Required Power (hp)	Full Width (folded) (mm)	Working Width (unfolded) (m)	Weight (kg)
AR2165HA	35~40	1,685	2.8	115
AR2175HA	40~45	1,800	2.92	118
AR3185HA	50~55	1,900	3.18	125
AR3195HA	55~60	2,000	3.43	131
AR4195HA	55~60	1,880	3.43	131
AR4205HA	60~70	2,105	3.48	133
AR4215HA	70~75	2,145	3.72	139
AR4220HA	75~80	2,260	3.84	142

* These specifications may be changed without prior notice to improve performance and quality.

Specifications (Large Size)

Specifications (Large Size)
Model	Required Power (hp)	Full Width (folded) (mm)	Working Width (unfolded) (m)	Weight (kg)
AR5230HA	90~100	2,370	4.17	162
AR5240HA	100~110	2,435	4.2	163
AR5250HA	110~120	2,570	4.37	174
AR5260HA	120~130	2,570	4.47	175

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

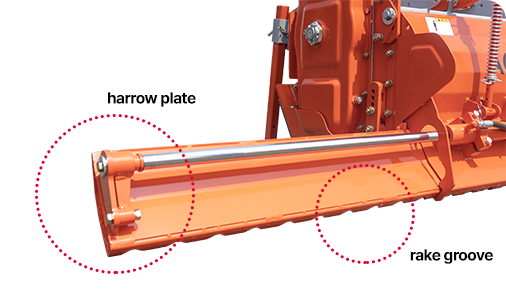

Feature 01
- - A specially shaped harrow arm that connects the cylinder rod
  and the harrow plate (invention patent)
- - Rake groove that boasts excellent grading work (invention patent)

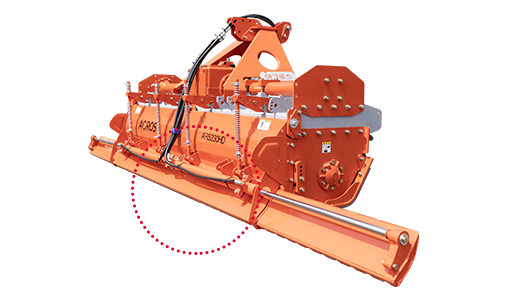

Feature 02
- - Reduces repair costs in case of future component damage
  by applying left/right independent cylinders
