AGROS is your pride

Product

Rotary Tillers

The AGROS rotary tillers boast high durability thanks to their sturdy design,
and help with efficient soil cultivation through a variety of models.

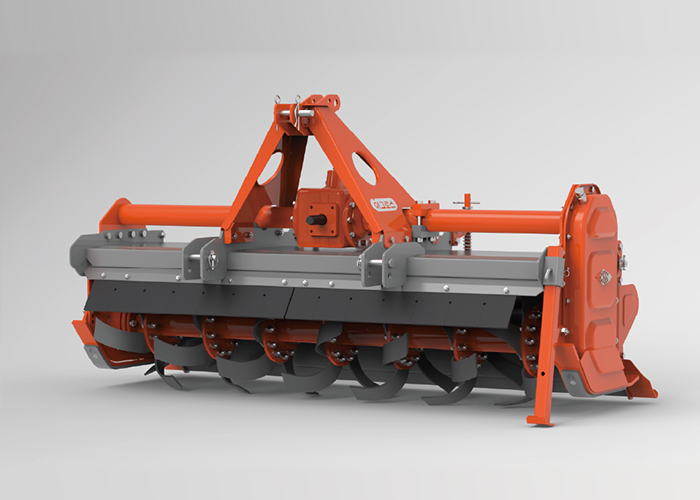

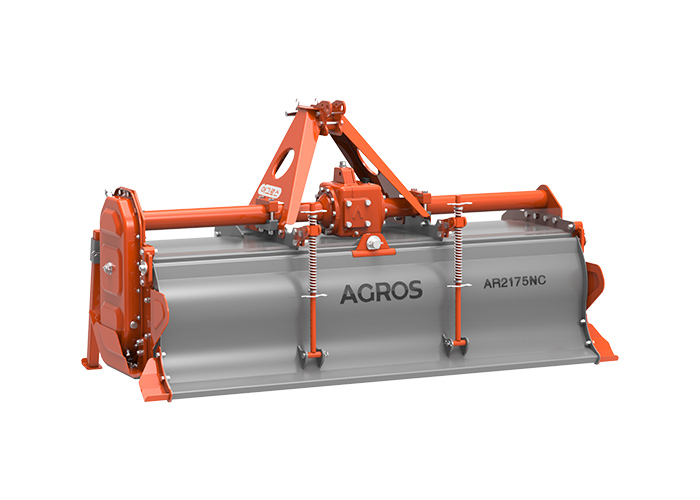

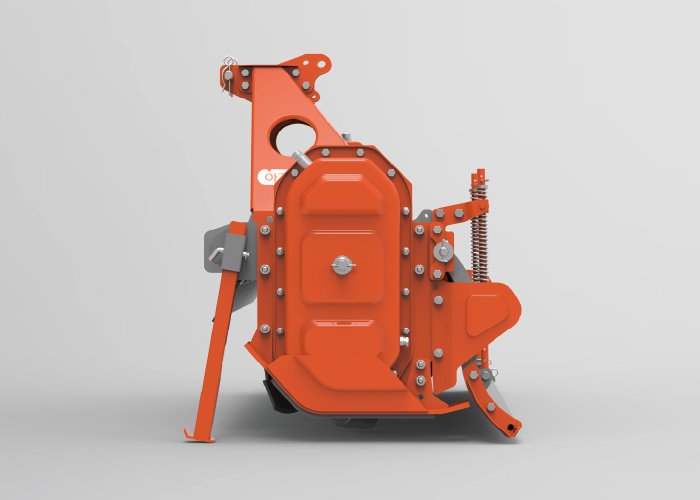

Small Size Rotary Tillers
(AR2000NC)

A single-stage type that can be mounted on 35~45 HP tractors.
This compact model is suitable for both paddy and field work.

It boasts excellent strength and durability by applying
a frame-type main deck,
high-strength pipe, and special material blade flange.

Catalog Product Inquiry

Specifications

제품사양
Model
Overall Width
(mm)
Overall Height
(mm)
Overall Length
(mm)
Working Width
(mm)
Working Depth
(mm)
Number of
Flanges (EA)
Number of
Blades (EA)
Blade Shaft
Speed (rpm)
Required Power
(hp)
Height of PTO Shaft (mm)
Weight
(kg)
AR2165NC  1,875 1,030 840 1,615 120~150  6 36 165.8 /
540rpm 		 35~40  615 390
AR2175NC  1,980 1,730 7 42 40~45  410

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

  • Feature 01

    Up to 70 HP single-speed gearbox
    (Oil gauge installed as standard)

  • Feature 02

    Spring tension and rolling type back cover
    (Using high tensile steel plate)

  • Feature 03

    Main deck with high-strength double frame
    structure

  • Feature 04

    • - Powerful special Geared side drive
      of material
    • - Perfect gear fixation using special
      grooved nuts

  • Feature 05

    • - Blade with excellent low load and
      soil fluidity Arrangement
    • - Special Material blade (Tilling blade)
      and blade flange
      (Tillage blade type: C)

  • Feature 06

    • - Economical and convenient replacement
      type Auxiliary skid
    • - Use of highly durable spring steel

  • Feature 07

    • - Special Front mud splatter prevention
      rubber plate with good material flexibility
    • - Detachable type for easy attachment
      and detachment

  • Feature 08

    Versatile with sturdy structure and various
    mounting holes top master

Rotary tiller maintenance inspection and refueling items(AR2000NC)

▲ : Check

● : Replace

Rotary tiller maintenance inspection and refueling items(AR2000NC)
Inspection Point Oil Type Oil Inspection Time Volume Instructions
Everyday 50 Hours
Everyday		 100 Hours
Everyday		 200 Hours
Everyday
Gearbox Gear Oil ▲ ▲ ● 3.0 Check the oil level using the oil gauge, and replace or add oil as needed.
Side Cover Gear Oil ▲ ▲ ● 2.5 If oil does not flow out when you open the inspection plug, add oil.
If oil flows out, check the oil's color and foreign matter condition,
and replace the oil if necessary.
Bearing Cover Gear Oil ▲ ▲ 0.2 The oil level is adequate when it reaches the inspection plug.
Universal Joint Grease ▲ ▲ Grease Nipple Injection
Conclusion of
Each Part 		▲ ▲ Check the attachment status of the top master’s plow blade
and the plow shaft.
Blade ▲ ▲ Inspect bolts and nuts for any damage or deformation.

※ After the initial 50 hours of use, replace all areas where gear oil is injected.

※ When replacing oil, dispose of waste at a designated, authorized waste disposal facility.
