AGROS is your pride

Product

Liquid Manure Spreaders

The AGROS liquid manure spreaders are custom-made products.

Liquid Manure Spreaders

AGROS liquid manure spreaders lead the way
with high-performance powerful pumps,
meticulous safety design, and precise, uniform spreading.

Catalog Product Inquiry

Specifications

제품사양
Model ALMS 3000(C) ALMS 4000(C) ALMS 5000(C) ALMS 8000(C) ALMS 10000(C)
Overall Length (mm) 5,930 6,160 6,470 7,000 7,300
Overall Width (mm) 1,760 2,040 2,040 2,100 2,100
Overall Height (mm) 2,470 2,630 2,630 2,700 2,800
Load Capacity (L) 3,000 4,000 5,000 8,000 10,000
Pump Volume (L / min) 3,600 4,350 6,150 8,100 8,100
Operating Rotation Speed (rpm) 540
Maximum Spreading Radius (m) Rear Spraying Method (10~12), High-Altitude Spraying Method (30~40)
Tire Standard 11.5 / 80 - 15.3(14PR) 12.5 / 80 – 15.3(16PR) 12.5 / 80 – 18(16PR)
Power Required (ps) 40ps or more 50ps or more 68ps or more 100ps or more 120ps or more

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

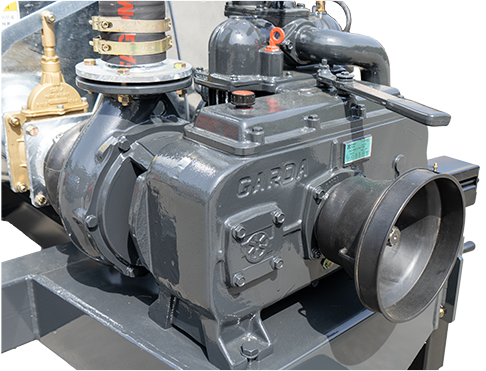

  • Feature 01

    A powerful, high-performance pump

    Equipped with an ultra-strong, high-performance pump,
    the suction and discharge of liquid manure is quick and smooth.

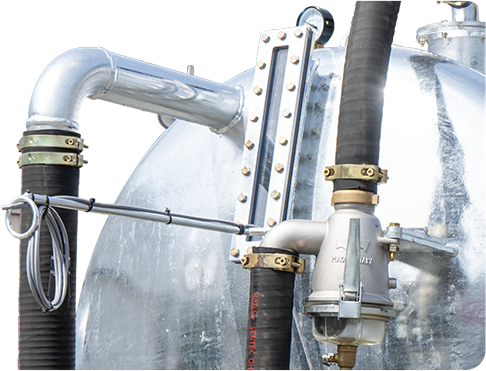

  • Feature 02

    Double backflow prevention device
    and transparent glass window

    When using liquid fertilizer, transparent glass has been attached
    for easy visual inspection of the contents.
    Additionally, devices to prevent first and second overflow, along
    with safety features, have been included to ensure safe operation
    even on slopes.

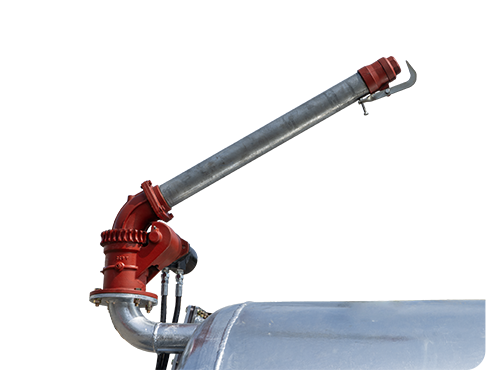

  • Feature 03

    The 360° rotating hydraulic rain gun

    A high-performance high-pressure combination tank can be equipped
    with a rain gun and remotely controlled via a hydraulic monitor, allowing
    for spraying and distribution over a radius of more than 30 meters.

    Additionally, it features 360° rotational operation for precise
    and uniform distribution.
