Rotary Tillers

The AGROS rotary tillers boast high durability thanks to their sturdy design,
and help with efficient soil cultivation through a variety of models.

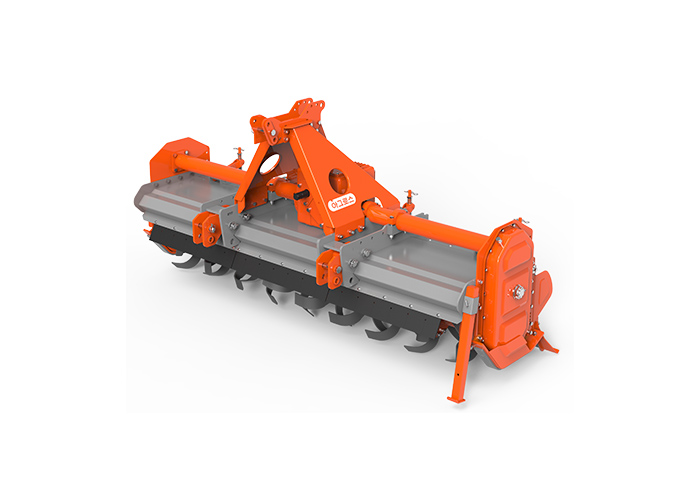

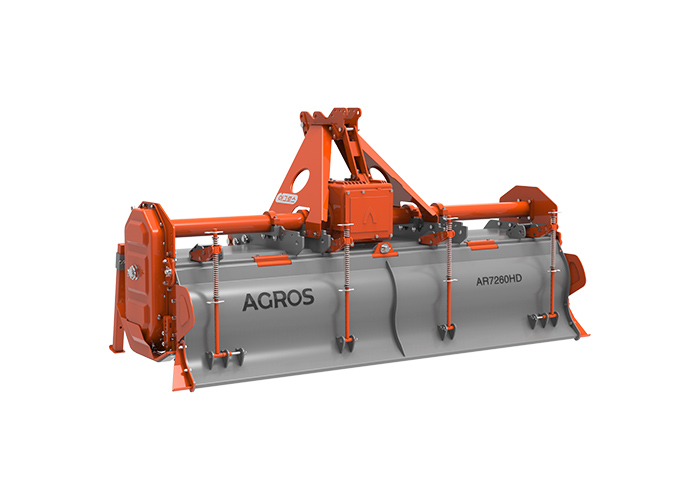

Extra Large Size Rotary Tillers
(AR7000HD)

The AR7000HD series can be mounted on tractors with 120
to 160 HP and is an ultra-large rotary tiller suitable
for both paddy and field work.

The floating function enables excellent shock absorption and
smooth soil breaking work, and the low-load blade arrangement increases soil fluidity to maximize work efficiency.

Catalog Product Inquiry

Specifications

제품사양
Model
Overall Width
(mm)
Overall Height
(mm)
Overall Length
(mm)
Working Width
(mm)
Working Depth
(mm)
Number of
Flanges (EA)
Number of
Blades (EA)
Blade Shaft
Speed (rpm)
Required Power
(hp)
Height of PTO Shaft (mm)
Weight
(kg)
AR7260HD  2,880 1,435 1,120 2,590 120~150  10 60 156, 173,
191, 210 /
540rpm		 120~130 860 1,095
AR7280HD  3,075 2,785 11 66 140~160 1,140

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

  • Feature 01

    Up to 200 HP multi-speed gearbox
    (Oil gauge installed as standard)

  • Feature 02

    • - Fixed rear cover with spring tension
      adjustment (Using high tensile steel plate)
    • - Back cover Adjustable attachment position
      can be changed

  • Feature 03

    Main deck with frame structure
    with high-strength double BEAM

  • Feature 04

    • - Powerful special Geared side drive
      of material
    • - Largest gear specifications in its class
    • - Perfect gear fixation using special grooved
      nuts

  • Feature 05

    • - Blade with excellent low load
      and soil fluidity Arrangement
    • - Special Material blade (Tilling blade)
      and blade flange
      (Tillage blade type: C)

  • Feature 06

    • - Economical and convenient replacement type Auxiliary skid
    • - Use of highly durable spring steel

  • Feature 07

    • - Special Front mud splatter prevention
      rubber plate with good material flexibility
    • - Detachable type for easy attachment
      and detachment

  • Feature 08

    Versatile with sturdy structure and various
    mounting holes top master

Rotary tiller maintenance inspection and refueling items(AR7000HD)

▲ : Check

● : Replace

Rotary tiller maintenance inspection and refueling items(AR7000HD)s
Inspection Point Oil Type Oil Inspection Time Volume Instructions
Everyday 50 Hours
Everyday		 100 Hours
Everyday		 200 Hours
Everyday
Gearbox Gear Oil ▲ ▲ ● 10.0 Check the oil level using the oil gauge, and replace or add oil as needed.
Side Cover Gear Oil ▲ ▲ ● 4.0 If oil does not flow out when you open the inspection plug, add oil.
If oil flows out, check the oil's color and foreign matter condition,
and replace the oil if necessary.
Bearing Cover Gear Oil ▲ ▲ 0.2 The oil level is adequate when it reaches the inspection plug.
Universal Joint Grease ▲ ▲ Grease Nipple Injection
Conclusion of
Each Part 		▲ ▲ Check the attachment status of the top master’s plow blade
and the plow shaft.
Blade ▲ ▲ Inspect bolts and nuts for any damage or deformation.

※ After the initial 50 hours of use, replace all areas where gear oil is injected.

※ When replacing oil, dispose of waste at a designated, authorized waste disposal facility.
