Rotary Tillers

The AGROS rotary tillers boast high durability thanks to their sturdy design,
and help with efficient soil cultivation through a variety of models.

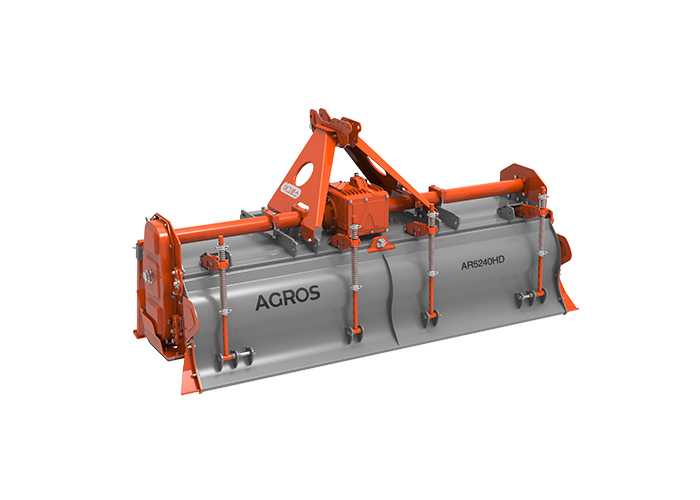

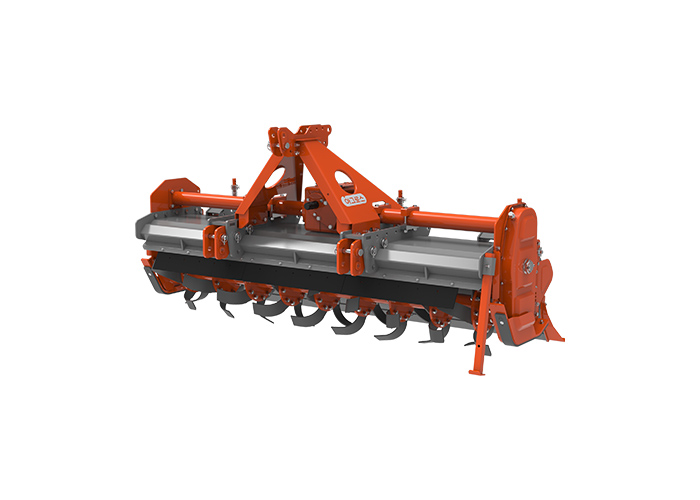

Large Size (high position)
Rotary Tillers
(AR5000HD)

The AR5000HD series can be mounted on tractors with 90~140
HP and is a deluxe large rotary tiller with solid PTO suitable
for both paddy and field work.

The floating function enables excellent shock absorption
and smooth soil breaking work, and the low-load blade
arrangement increases soil fluidity to maximize work efficiency.

Catalog Product Inquiry

Specifications

제품사양
Model
Overall Width
(mm)
Overall Height
(mm)
Overall Length
(mm)
Working Width
(mm)
Working Depth
(mm)
Number of
Flanges (EA)
Number of
Blades (EA)
Blade Shaft
Speed (rpm)
Required Power
(hp)
Height of PTO Shaft (mm)
Weight
(kg)
AR5230HD 2,585 1,250 1,000 2,290 120~150  9 54 156, 175,
196, 219 /
540rpm 		 90~100 785 870
AR5240HD 2,650 2,350 9 54 100~120 880
AR5250HD 2,780 2,480 10 60 110~120 915
AR5260HD 2,880 2,580 10 60 120~140 930

* These specifications may be changed without prior notice to improve performance and quality.

Product Features

  • Feature 01

    • - Up to 150 HP multi-speed gearbox
      (Oil gauge installed as standard)
    • - High position PTO

  • Feature 02

    • - Spring tension type back cover control bar
      (Sturdy ring pin fixation type)
    • - Back cover adjustable attachment position
      can be changed

  • Feature 03

    Floating type lower link connection plate
    absorbs shock loads and increases aircraft
    stability

  • Feature 04

    • - Powerful special geared side drive
      of material
    • - Perfect gear fixation using special
      grooved nuts

  • Feature 05

    Blade arrangement that increases soil fluidity

  • Feature 06

    • - Economical and convenient
      replacement type auxiliary skid
    • - Use of highly durable spring steel
    • - Standard installation
      of side earth blocking plates

  • Feature 07

    • - Special front mud splatter prevention
      rubber plate with good material flexibility
    • - Detachable type for easy attachment
      and detachment

  • Feature 08

    Versatile with sturdy structure and various
    mounting holes top master

Rotary tiller maintenance inspection and refueling items(AR5000HD)

▲ : Check

● : Replace

Rotary tiller maintenance inspection and refueling items(AR5000HD)
Inspection Point Oil Type Oil Inspection Time Volume Instructions
Everyday 50 Hours
Everyday		 100 Hours
Everyday		 200 Hours
Everyday
Gearbox Gear Oil ▲ ▲ ● 9.0 Check the oil level using the oil gauge, and replace or add oil as needed.
Side Cover Gear Oil ▲ ▲ ● 4.0 If oil does not flow out when you open the inspection plug, add oil.
If oil flows out, check the oil's color and foreign matter condition,
and replace the oil if necessary.
Bearing Cover Gear Oil ▲ ▲ 0.2 The oil level is adequate when it reaches the inspection plug.
Universal Joint Grease ▲ ▲ Grease Nipple Injection
Conclusion of
Each Part 		▲ ▲ Check the attachment status of the top master’s plow blade
and the plow shaft.
Blade ▲ ▲ Inspect bolts and nuts for any damage or deformation.

※ After the initial 50 hours of use, replace all areas where gear oil is injected.

※ When replacing oil, dispose of waste at a designated, authorized waste disposal facility.
